WHDR™ Kitchen Fire Suppression System – Commercial

Key Advantages

Applications

The WHDR™ Kitchen Fire Suppression System is designed to protect commercial cooking environments including:

  • Casual and family dining restaurants
  • Fast food chains
  • Fine dining establishments
  • Food trucks
  • Corporate cafeterias
  • Educational facilities
  • Healthcare facilities
  • Hotels and lodging
  • Institutional facilities
  • Food courts and supermarkets
  • Sports stadiums and complexes

Areas Protected

  • Exhaust hoods, plenums, and filters
  • Ductwork
  • Fryers
  • Ranges
  • Char-broilers
  • Woks
  • Griddles
  • Salamanders
  • Tilt skillets
  • Additional cooking appliances as required

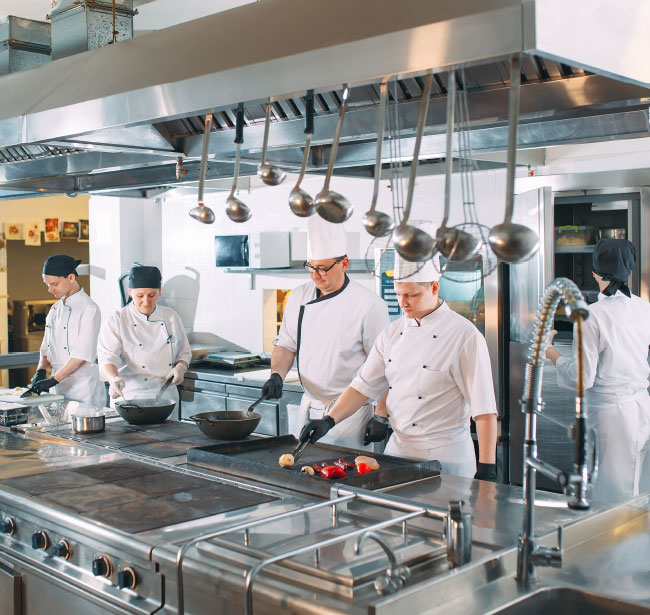

Applications For Commercial Kitchens

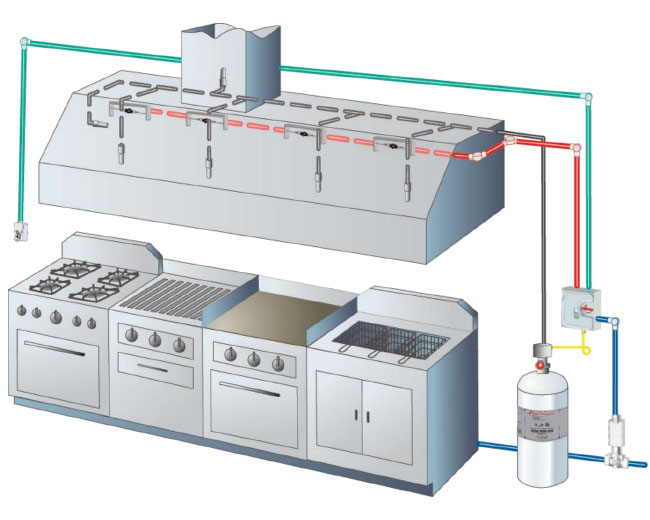

How the WHDR™ Kitchen Fire Suppression System Works

How the WHDR™ Kitchen Fire Suppression System Works

System Architecture

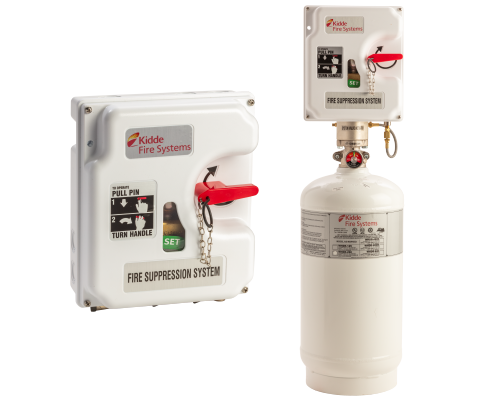

System Components

  • XV™ Control System

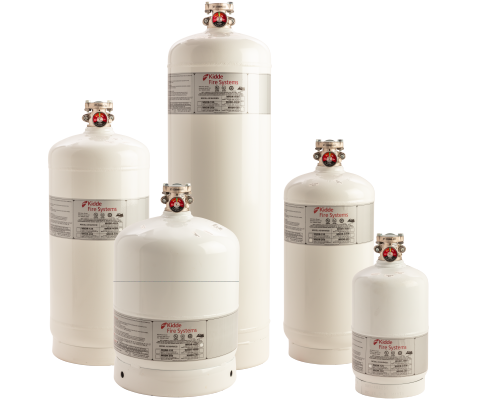

  • WHDR™ Agent Storage Cylinder & Valve Assemblies
  • APC Wet Chemical Agent (potassium salt solution)
  • Thermo-Bulb, Fusible Link, or DETECT-A-FIRE® detectors

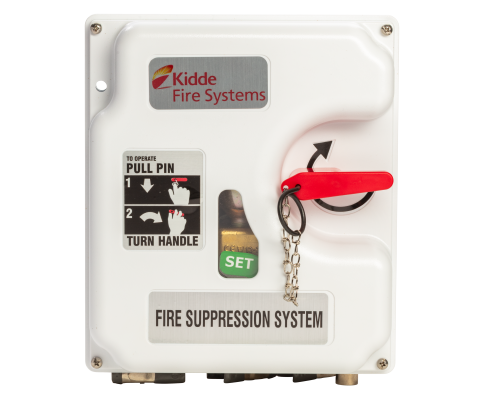

  • Manual Remote Release

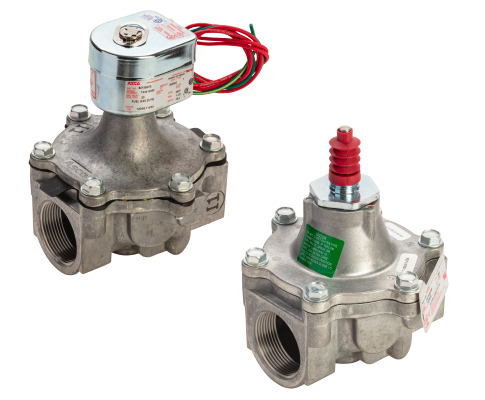

  • Automatic Gas Shut-Off Valve
  • Customized Discharge Nozzles
  • Fixed Pipe Distribution Network

The APC wet chemical agent works through saponification, forming a synthetic cellular mass over hot grease surfaces to smother the fire and prevent re-ignition.

Installation & Maintenance

  • Installed and commissioned by factory-authorized distributors
  • Semi-annual inspection and maintenance per NFPA requirements
  • Designed for efficient servicing and long-term reliability
Compliance & System Standards
  • UL / ULC Listed
  • NYC Fire Department Certificate of Approval
  • ANPI Approved
  • ABS Type Approved
  • DNV Type Approved
  • Lloyd’s Register Type Approved
  • UK MER Approved
Codes, Standards & Listings

The WHDR™ Kitchen Fire Suppression System is designed and installed in accordance with applicable codes and standards, including:

  • ANSI/CAN/UL/ULC 300, Standard for Fire Testing of Fire Extinguishing Systems for Protection of Commercial Cooking Equipment
  • ANSI/CAN/UL/ULC 1254, Standard for Pre-Engineered and Engineered Dry and Pre-Engineered Wet Chemical Extinguishing System Units
  • ISO 15371:2015 – Ships and marine technology — Fire-extinguishing systems for protection of galley cooking equipment
  • NFPA 17A – Standard for Wet Chemical Extinguishing Systems
  • NFPA 96 – Standard for Ventilation Control and Fire Protection of Commercial Cooking Operations
  • NFPA 70 National Electrical Code®(NEC)
  • NFPA 72 National Fire Alarm and Signaling Code

Engineered for the Kitchen. Proven in the Field.

The WHDR™ Kitchen Fire Suppression System delivers dependable, automatic wet chemical fire protection for commercial cooking  and mobile cooking environments, combining code compliance, proven technology, and tailored system design to protect your operation around the clock.
