Wheelock® Eluxa Multi-Tone Horn Strobe
Eight Alerting Tones and LED Strobe Notification in One Device
The Wheelock® Eluxa Multi-Tone Horn Strobe combines eight selectable alerting tones with energy-efficient LED strobe technology to deliver reliable audible and visual notification in one compact device. Designed for indoor applications, this wall-mounted notification appliance offers flexible sound and light output settings to meet the signaling requirements of commercial, industrial, and mission-critical environments.
Key Advantages
- Eight Selectable Alerting Tones
Provides versatile audible signaling options for a wide range of notification applications. - Adjustable Strobe Output
Offers six field-selectable candela settings to accommodate varying visual notification requirements. - Energy-Efficient LED Technology
Helps minimize power consumption and operating costs while delivering dependable visual alerts.
- Flexible Sound Output
Standard and High dBA settings allow audible notification levels to be adjusted to application needs. - Simplified Installation
Features a hinged mounting plate designed for convenient pre-wiring and pre-testing, helping streamline installation.

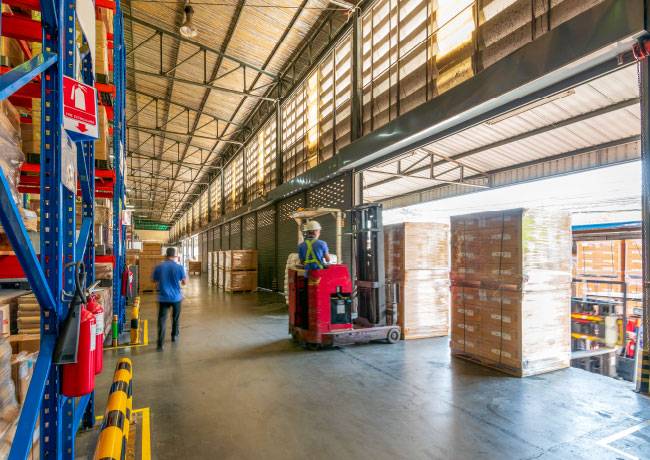

Applications
- Data Centers & Mission Critical Facilities
- Industrial & Manufacturing Environments
- Commercial Buildings
- Energy & Utility Facilities
- Telecommunications Infrastructure
- Special Hazard Fire Protection Systems
System Architecture
Construction & Design
Lens: Clear LED
Mounting: Indoor wall-mount
Strobe: Six field-selectable candela settings
Alerting Tones: Eight selectable audible signals
Installation: Pre-wire/pre-test hinged mounting plate
Volume Control: Standard and High dBA outputs
Dimensions: 6.35”H x 4.56” W x 1.54” D
Technical Specifications
| SPECIFICATION | DETAILS |
|---|---|
| Operating Voltage | 24 V |
| Candela Settings | Wall: 15, 30, 75, 110, 135, 185 cd |
| Ceiling Candela Settings | 15, 30, 75, 110, 150, 177 cd |
| Sound Output | 92 dBA (10 ft reverberant), 99 dBA (10 ft anechoic) |
| Current Draw | 0.022A to 0.185A |
| Operating Temperature | 32°F to 122°F (0°C to 50°C) |
Flexible Notification for Critical Applications
Designed to deliver dependable audible and visual signaling, the Wheelock Eluxa Multi-Tone Horn Strobe combines versatile alerting options, energy-efficient LED technology, and simplified installation in one compact device. Its adjustable settings make it a practical notification solution for commercial, industrial, and mission-critical environments.
